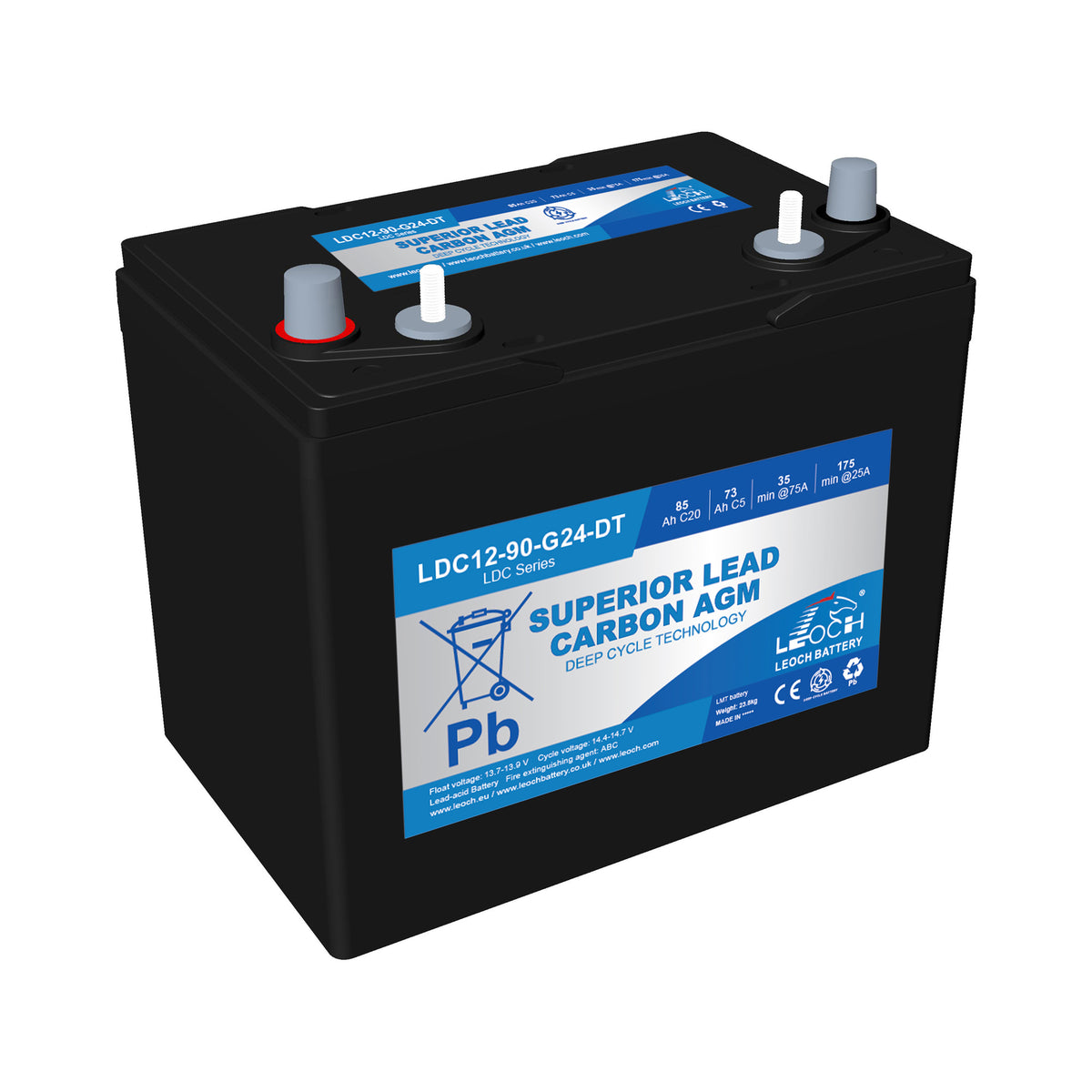

Leoch LDC12-90-G24-DT 12V 90Ah (C20) DT-5/16 Battery
LDC – Superior Lead Carbon AGM, the best deep cycle battery on the market! Exclusive deep cycle technology created by Leoch Battery. The series is available in blocks of 6, 8 and 12 volt batteries allowing it to be used in a multitude of applications. While also offering superior performance with lead carbon and AGM technology, providing a long-life and super-fast power solution for both industrial and lifestyle markets.
This range is specially engineered for deep cycle performance. Designed with a positive plate formula to minimise water consumption and provide a long service life at 1,000 cycles at 60% DoD (Depth of Discharge). A unique mixture of carbon and other key additives found in negative material allows the LDC to perform in Partial State of Charge, which offers many advantages such as fast charging capability and reduced sulphation, in short, key reasons for premature failure.
Features:
- Special mixture of carbon and other proprietary additives in negative active material (NAM) for high performance in partial state of charge (PSoC) applications
- Designed and optimized for cyclic intensive and PSoC motive applications
- Unique one-way vent valve design to minimize water loss and increase safety
- ABS case UL94-HB (UL94-V0 Optional) is used for increased container strength
- One of a kind paste formula
- Low self-discharge at less than 3% per month at 77°F (25°C)
- Excellent vibration resistance
- Wide model range offering 6V, 8V and 12V blocks
- Inhouse design of one-of-a-kind separator preventing acid stratification, while optimizing electrolyte retention
- Thick plates using a special pasting formula ensures long service life
- 1000 cycles at 60% DOD
- Wide operating temperature range (-40°- +65°c)
- Quick charging, 80% in 3 hours (depending on model and application)
Application: Built for light-to-medium cyclic deep-cycle use in recreational settings (caravans, boats, motorhomes).
Our Top Pick/Upgrade Options
Description
LDC – Superior Lead Carbon AGM, the best deep cycle battery on the market! Exclusive deep cycle technology created by Leoch Battery. The series is available in blocks of 6, 8 and 12 volt batteries allowing it to be used in a multitude of applications. While also offering superior performance with lead carbon and AGM technology, providing a long-life and super-fast power solution for both industrial and lifestyle markets.
This range is specially engineered for deep cycle performance. Designed with a positive plate formula to minimise water consumption and provide a long service life at 1,000 cycles at 60% DoD (Depth of Discharge). A unique mixture of carbon and other key additives found in negative material allows the LDC to perform in Partial State of Charge, which offers many advantages such as fast charging capability and reduced sulphation, in short, key reasons for premature failure.
Features:
- Special mixture of carbon and other proprietary additives in negative active material (NAM) for high performance in partial state of charge (PSoC) applications
- Designed and optimized for cyclic intensive and PSoC motive applications
- Unique one-way vent valve design to minimize water loss and increase safety
- ABS case UL94-HB (UL94-V0 Optional) is used for increased container strength
- One of a kind paste formula
- Low self-discharge at less than 3% per month at 77°F (25°C)
- Excellent vibration resistance
- Wide model range offering 6V, 8V and 12V blocks
- Inhouse design of one-of-a-kind separator preventing acid stratification, while optimizing electrolyte retention
- Thick plates using a special pasting formula ensures long service life
- 1000 cycles at 60% DOD
- Wide operating temperature range (-40°- +65°c)
- Quick charging, 80% in 3 hours (depending on model and application)
Application: Built for light-to-medium cyclic deep-cycle use in recreational settings (caravans, boats, motorhomes).
Technical Information
- Category: Leisure lead acid
- Length (mm): 260 mm
- Width (mm): 168 mm
- Height (mm): 208 mm
- Height with Terminals (mm): 232.5 mm
- C10:
- C20: 90
- CCA:
- Layout:
- Terminal: DT(5/16")
- Hold down:
- Handles:
- Weight (Kg): 23.8
Diagrams
Terminal: DT
